MOSAIK ESD tiles are conductive and static-dissipative PVC tiles designed for facilities where static electricity must be dissipated: electronic component manufacturing, the automotive industry, ATEX zones, electrical distribution centers, data centers, laboratories, and healthcare facilities.
The material incorporates charges specifically designed to prevent the buildup of static electricity. Combined with copper strips installed in the floor, the tiles conduct the charges to an end tile connected to ground via the grounding kit: the floor becomes a safe, conductive surface that can be used as a primary floor, in compliance with IEC 61340-4-1.
Dovetail clipping can be done without glue or tools on any surface and allows you to work on the space in sections without interrupting operations. Price shown is per square meter, including tax.
| Dimensions | 65.3 x 65.3 cm, 4 mm thick — 51 x 51 cm, 7 mm thick |
| Thickness | 4 mm or 7 mm |
| Colors | Graphite (RAL 7015) or light gray (RAL 7045) |
| Electric resistance | Less than 10⁹ Ω (ESD) |
| Standard | Complies with the requirements of IEC 61340-4-1 |
| Material | 100% homogeneous PVC, manufactured in the Czech Republic |
| Weight | 9.6 kg/m² |
| Hardness | 92 Shore A |
| Slip resistance | R10 |
| Rolling loads | 4-wheel pallet truck, 2.5 metric tons · 3-wheel pallet truck, 1.5 metric tons · manual pallet jack, 1.5 metric tons · electric pallet jack, 1 metric ton |
| Installation | Dovetail clamping—no glue or tools required—on any surface |
| Maintenance | Mop or floor scrubber, neutral cleaner |
| Warranty | Up to 12 years — 25-year lifespan |
You can also watch the installation video below:
A truly conductive soil
Resistance less than 10⁹ Ω, copper strips, and grounding kit: charges are dissipated, not accumulated. Complies with IEC 61340-4-1.
Industrial Resistance
Homogeneous PVC, 92 Shore A: forklifts up to 2.5 metric tons and heavy point loads without leaving marks on the surface.
Without any interruption in operations
The dovetail joint system allows you to work in sections—without glue, without tools, and without preparing the surface.
Sustainable and easy to live with
- Up to a 12-year warranty, 25-year lifespan
- A damaged tile can be replaced individually
- Easy maintenance and cleaning
- Manufactured in the Czech Republic for 30 years
Choose two products to see how they differ.
ESD Antistatic PVC Tile
Electronics, data centers, logistics
65.3 x 65.3 cm, 4 mm thick - 51 x 51 cm, 7 mm thick
Thickness: 4 mm or 7 mm
Starting at €75.00 per square meter
ESD Antistatic PVC Tile
Manufacturing, Electronics, Logistics
50 x 50 cm
Thickness: 5 mm or 7 mm
Starting at €43.20 per square meter
Lumiplan Duhamel · Electronics
Antistatic ESD flooring installed in one dayView the project
Johanna Romney
When ordering Tajima vinyl tiles for a 220-square-meter store in Saint Barthélemy (French West Indies), Lionnel was incredibly helpful and professional. He was always available and responded quickly, despite the time difference.
The tiles look flawless. Installation is easy, even for non-professionals.
Jean Luc A
Great communication with the team.
Excellent product that’s very easy to install using a mallet and a jigsaw
for cutting.
Tracked shipping
No issues
I highly recommend it
Thank you
HD Carshine Holzinger
I ordered some tiles from Germany. I have to say that everything went smoothly, and the package arrived well-packed in about 7 days. The value for money is excellent! The quality is good, too! I’ll be ordering again soon.
Copper strips are laid on the floor before the slabs are installed. The conductive slabs carry the loads to an end slab, which is connected to ground via the grounding kit.
The grounding kit and ESD tape are essential for the conductive floor to function properly. ESD edging and corner pieces provide the perimeter finish.
Two sizes: 65.3 x 65.3 cm, 4 mm thick, and 51 x 51 cm, 7 mm thick.
4-wheel forklifts with a capacity of up to 2.5 metric tons, 3-wheel forklifts with rubber tires with a capacity of up to 1.5 metric tons, manual pallet jacks with a capacity of up to 1.5 metric tons, and electric pallet jacks with a capacity of up to 1 metric ton.
No, the flooring can be installed on any surface. The tiles snap together using dovetail joints—no glue or tools required—and installation can proceed in sections without interrupting operations.
Manufacturing of electrical components, the automotive industry, areas at risk of explosion, electrical distribution panels, data centers, laboratories, and public health.
Up to 12 years, with an estimated service life of 25 years. The tiles have been manufactured in the Czech Republic for 30 years.

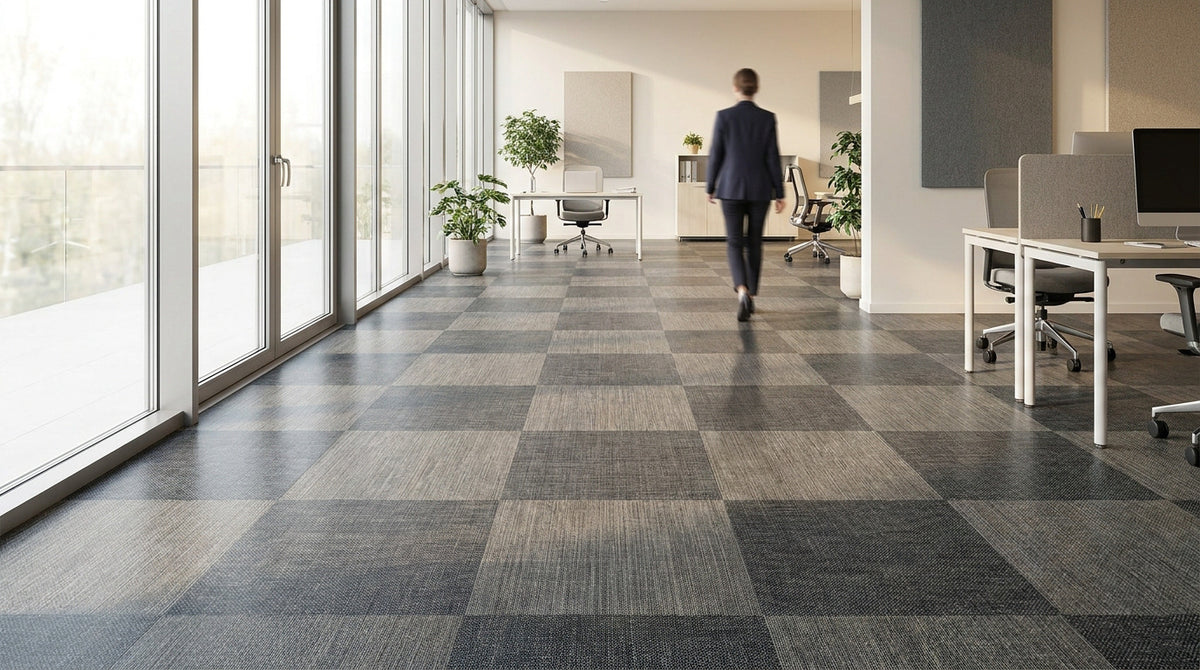

La dalle en vinyle tissé associe une surface textile à un support conçu pour les espaces professionnels. Elle apporte une identité visuelle chaleureuse, améliore le confort d’usage et facilite le...
